colposcopy imaging system

System image resolution:480TVL
Camera: CCD camera, effective pixels no less than 740 thousand
Lens:26 times of optical zoom,3.5(the wide angle end)--91.0mm(distal end)optical zoom lens(F1.6--F3.8)
Digital zoom:12times (312 times zoom)
The shortest shooting distance:320mm(the wide angle end )to 800mm(distal end)
1.6 range of vision:2.5mm--20mm--320mm
The wide angle end F=3.5mm
Light source: round ultra-low temp. LED light source, illuminance more than 1.5*103Lux
Lens SNR: not less than 50dB
DSP automatic focusing system ,manual focusing adjustable
Real-time image capturing including automatic and manual two type of ways ,several images display in one screen simultaneously
The image processing with the function of zoom in ,zoom out ,strengthen, pseudo color, positive, negative, marking with the function of measuring ,calculating and copy ,which can measuring perimeter and area
Editing the printed report freely, and the diagnostic report and operative report can be printed out and edited to different report modes ,and then become a user template.
With function of record, display, frozen , cine replay, storing ,deleting images .

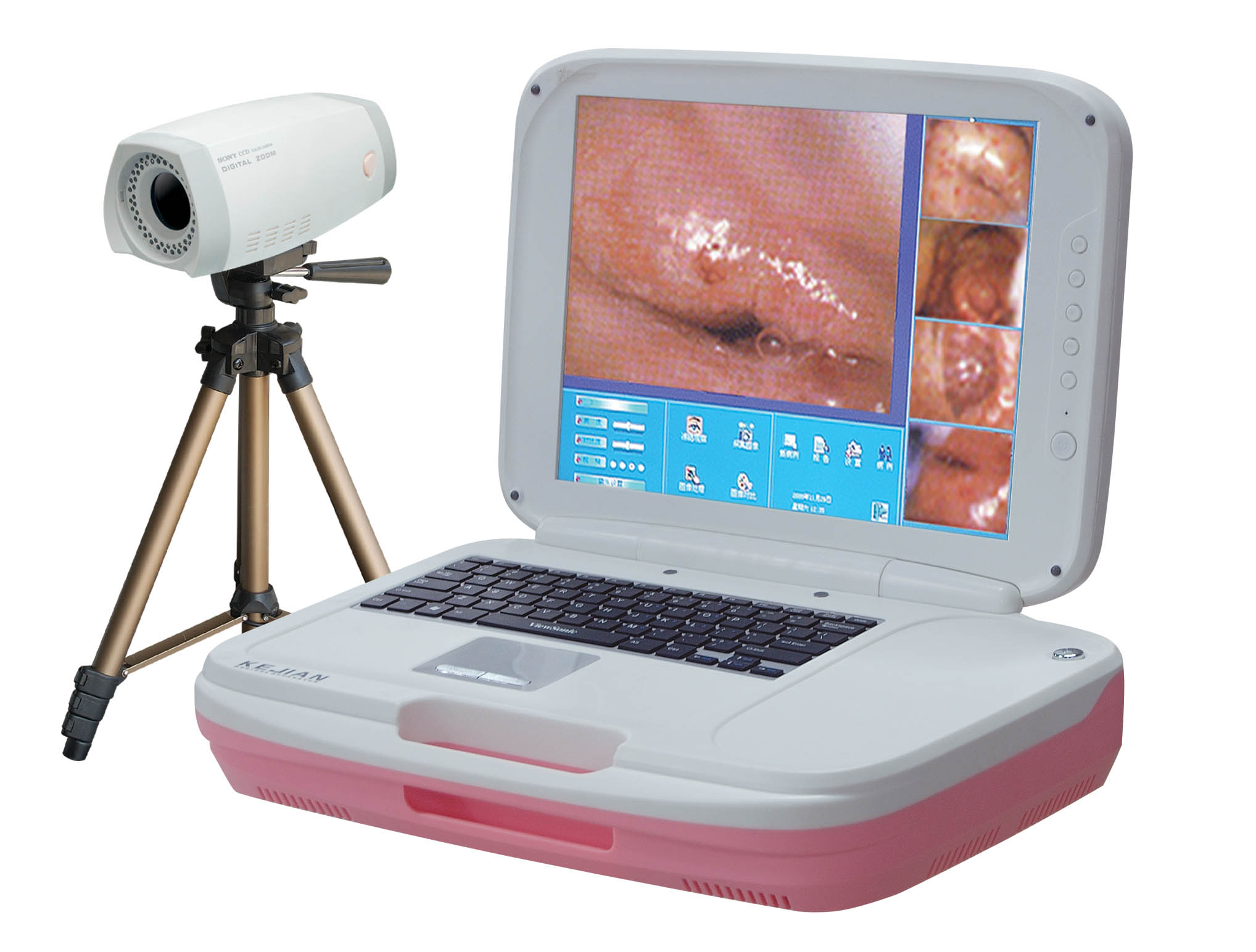

AD-2000Y Colposcopy imaging system(portable)

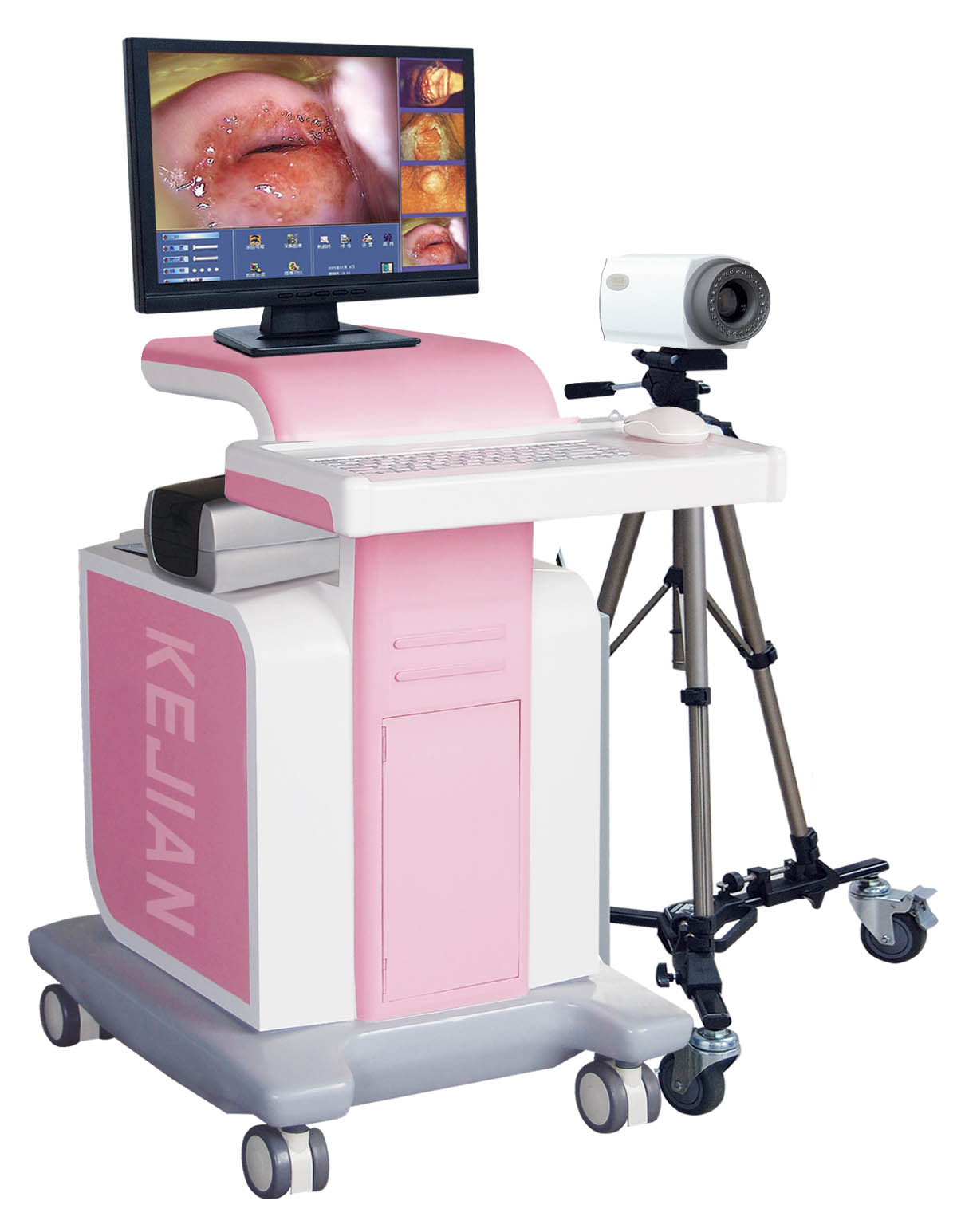

AD-2000Y Colposcopy imaging system(trolley)
